RatVision

Overview

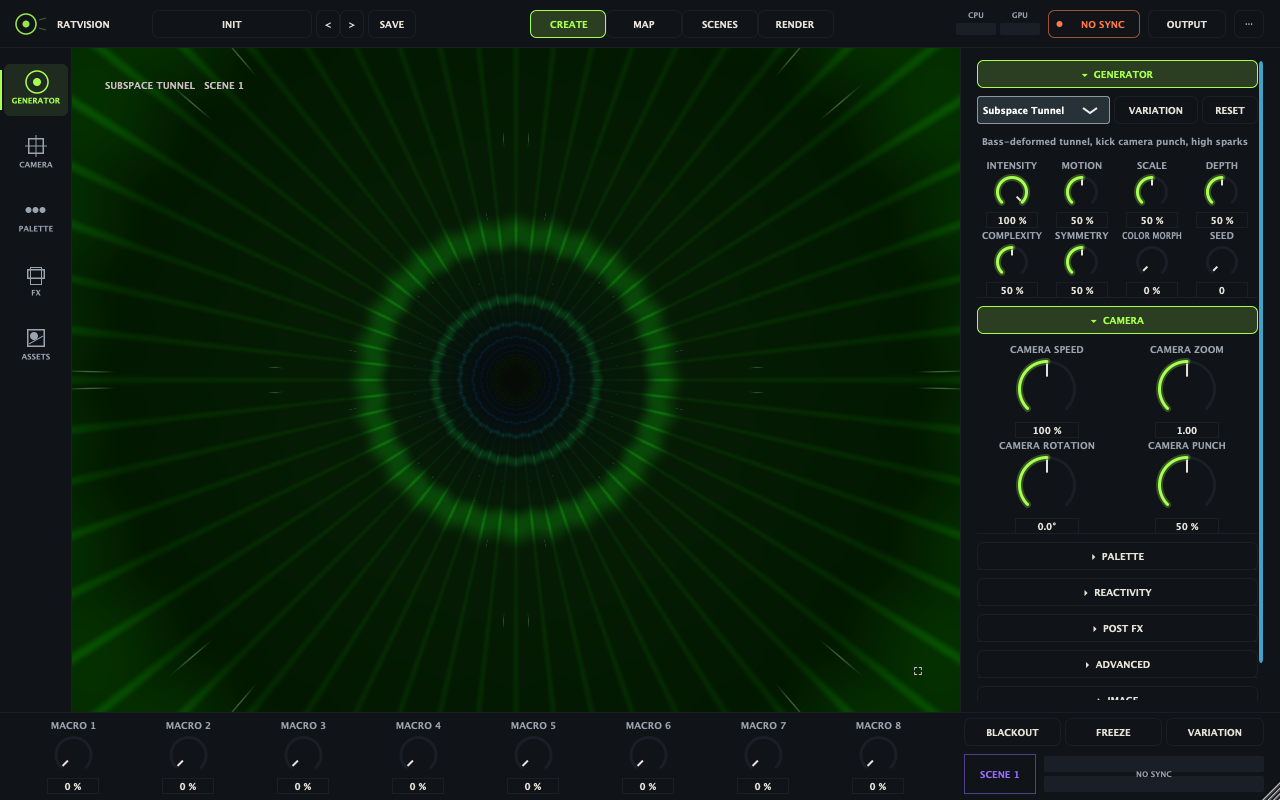

RatVision is an audio-reactive visual synthesizer that lives on an audio track. Audio passes through unchanged; RatVision listens to it (sub, bass, low-mid, mid and high bands, RMS, peak, transients, stereo width, spectral centroid, plus kick and snare hits), reads tempo, position and loop state from the host, and drives procedural GPU visuals in the plug-in's Eye viewport. Pick one of 18 generators (Subspace Tunnel, Pulse Rings, Particle Field, Wire Grid, Liquid Field, Kaleido Core, Fractal Bloom, Oscilloscope, Spectrum Architecture, Void Shapes, Plasma, Voronoi Cells, Starfield, Nebula, Lissajous, Spectrogram Waterfall, Boids, and Emblem for your own logo or artwork), stack up to four of 16 post effects (from Bloom, Feedback and Kaleidoscope to Film Grain, Scanlines and Datamosh), then map anything to anything: drag BASS onto a knob in the MAP workspace and it moves. Four LFOs, an eight-slot modulation matrix, MIDI input (note, velocity, gate, aftertouch, pitch bend, CC) and an optional sidechain feed the visuals. Eight scenes per patch switch with six transition types from an automatable Scene Select, and eight named macros, Blackout and Freeze are always on screen. Open a clean output window on a second display or projector for live shows, or capture a performance and let the included RatVision Render app turn it into an H.264, HEVC or ProRes movie (or a PNG sequence) with your audio, rendering the same frames every time. 34 factory presets come in eight genre banks.

Features

• ▸18 audio-reactive generators, from Subspace Tunnel and Fractal Bloom to Nebula, Boids and Emblem (your own logo)
• ▸16 post effects in a four-slot chain, including Datamosh, Film Grain, Scanlines and a strobe safety limiter
• ▸Real-time analysis: five bands, RMS, peak, transients, width, centroid, kick and snare hits
• ▸Four tempo-synced LFOs and an eight-slot drag-to-map modulation matrix
• ▸MIDI input and optional sidechain analysis; audio always passes through untouched
• ▸Eight scenes with six transition types, automatable from the host
• ▸Fullscreen output window with display selection for projectors and LED walls
• ▸Capture and Studio Render to H.264 / HEVC MP4, ProRes MOV or PNG, deterministic frame for frame
